Detailed Description

Abstract class to provide functions generic to all the output directives.

This class is used by the output manager FGOutput to manage a list of different output classes without needing to know the details of each one of them. It also provides the functions that are common to all the output classes.

The class inherits from FGModelFunctions so it is possible to define functions that execute before or after the output is generated. Such functions need to be tagged with a "pre" or "post" type attribute to denote the sequence in which they should be executed.

The class mimics some functionalities of FGModel (methods InitModel(), Run() and SetRate()). However it does not inherit from FGModel since it is conceptually different from the model paradigm.

Definition at line 90 of file FGOutputType.h.

#include <FGOutputType.h>

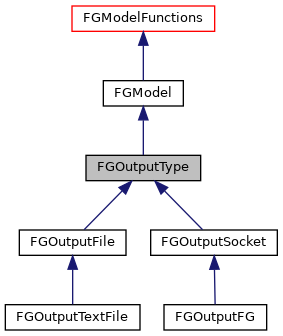

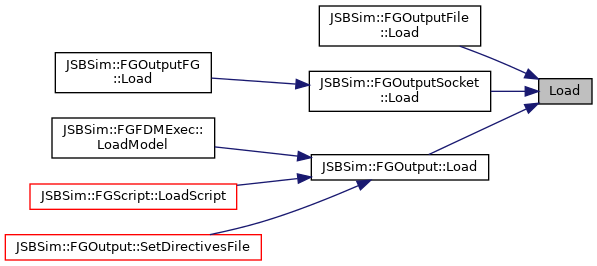

Inheritance diagram for FGOutputType:

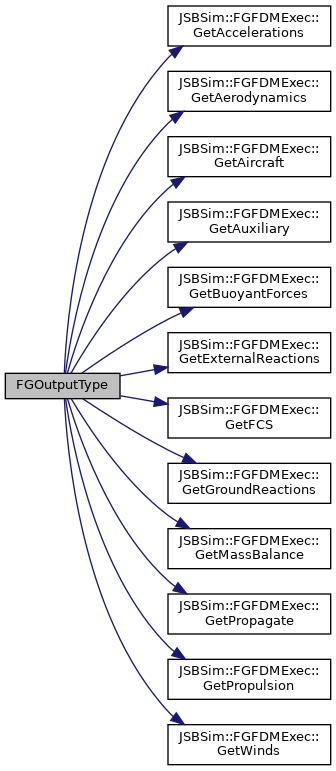

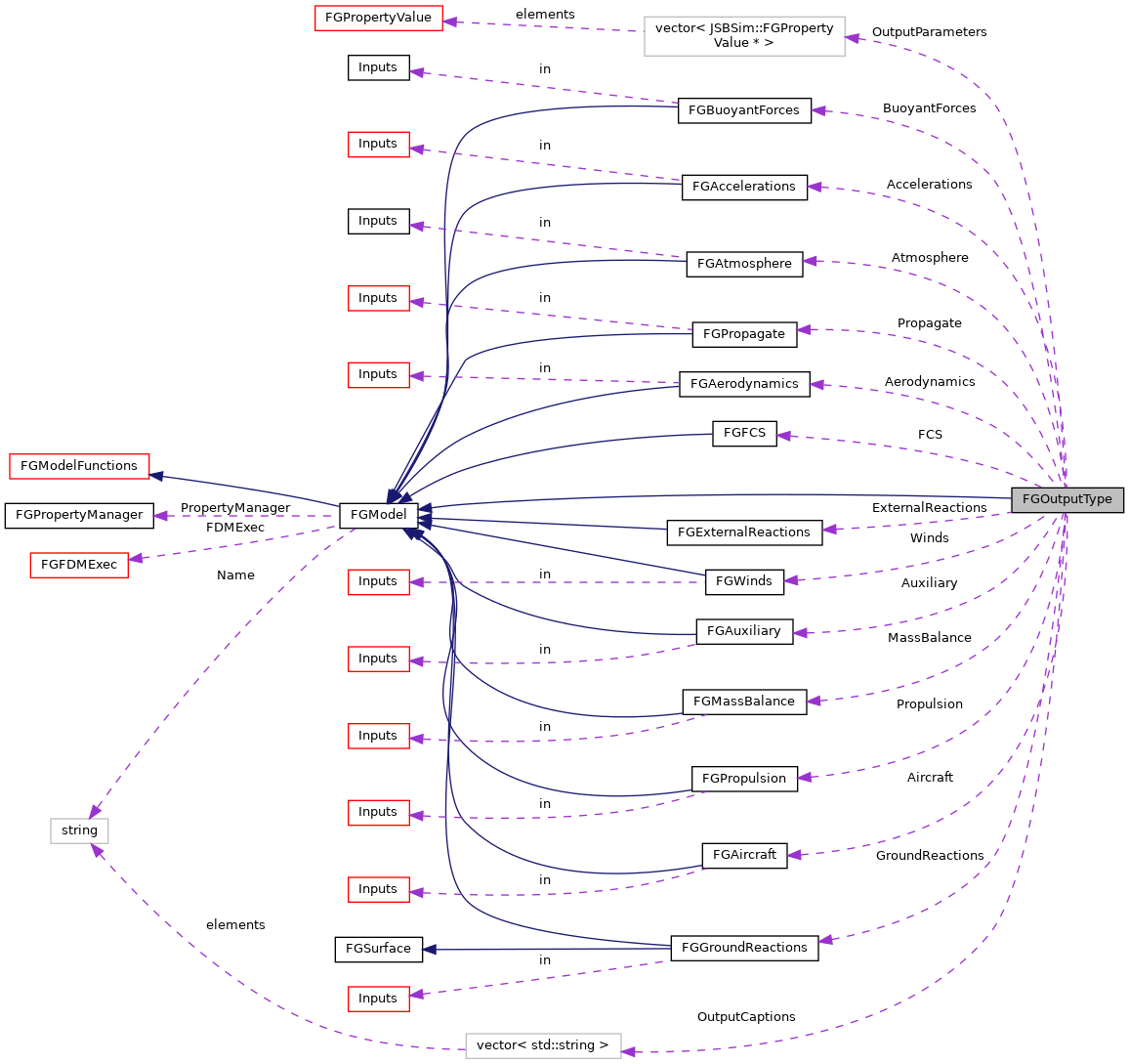

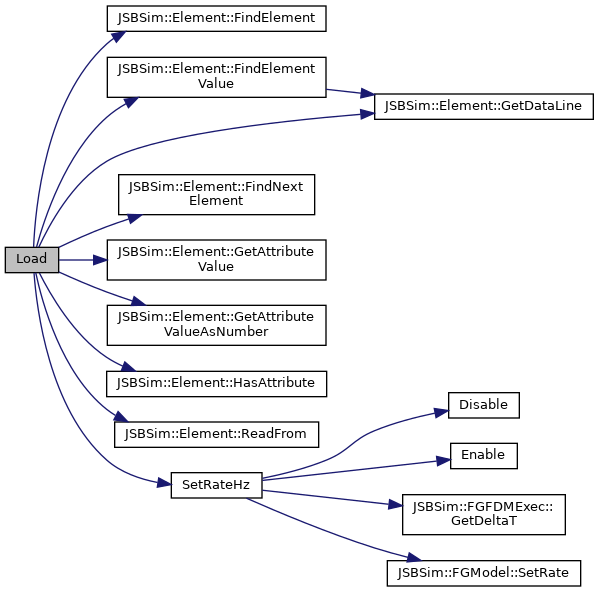

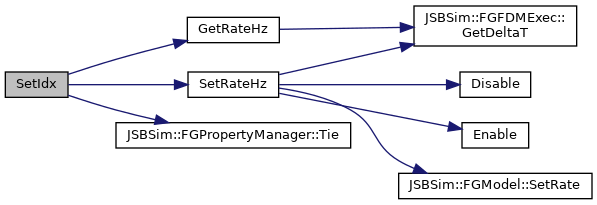

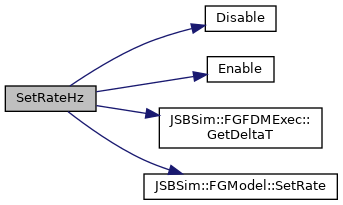

Collaboration diagram for FGOutputType:

Public Types
enum	eSubSystems { ssSimulation = 1, ssAerosurfaces = 2, ssRates = 4, ssVelocities = 8, ssForces = 16, ssMoments = 32, ssAtmosphere = 64, ssMassProps = 128, ssAeroFunctions = 256, ssPropagate = 512, ssGroundReactions = 1024, ssFCS = 2048, ssPropulsion = 4096 }
	Subsystem types for specifying which will be output in the FDM data logging. More...

Public Types inherited from FGJSBBase
enum	{ eL = 1, eM, eN }
	Moments L, M, N.

enum	{ eP = 1, eQ, eR }
	Rates P, Q, R.

enum	{ eU = 1, eV, eW }
	Velocities U, V, W.

enum	{ eX = 1, eY, eZ }
	Positions X, Y, Z.

enum	{ ePhi = 1, eTht, ePsi }
	Euler angles Phi, Theta, Psi.

enum	{ eDrag = 1, eSide, eLift }
	Stability axis forces, Drag, Side force, Lift.

enum	{ eRoll = 1, ePitch, eYaw }
	Local frame orientation Roll, Pitch, Yaw.

enum	{ eNorth = 1, eEast, eDown }
	Local frame position North, East, Down.

enum	{ eLat = 1, eLong, eRad }
	Locations Radius, Latitude, Longitude.

enum	{ inNone = 0, inDegrees, inRadians, inMeters, inFeet }
	Conversion specifiers.

Public Member Functions
	FGOutputType (FGFDMExec *fdmex)
	Constructor (implement the FGModel interface). More...

	~FGOutputType () override
	Destructor.

void	Disable (void)
	Disables the output generation.

void	Enable (void)
	Enables the output generation.

virtual const std::string &	GetOutputName (void) const
	Get the name identifier to which the output will be directed. More...

double	GetRateHz (void) const
	Get the output rate in Hz for this output.

bool	InitModel (void) override
	Init the output model according to its configitation.

bool	Load (Element *el) override
	Init the output directives from an XML file (implement the FGModel interface). More...

virtual void	Print (void)=0
	Generate the output. More...

bool	Run (void)
	Executes the output directives (implement the FGModel interface). More...

void	SetIdx (unsigned int idx)
	Set the idx for this output instance. More...

virtual void	SetOutputName (const std::string &name)
	Overwrites the name identifier under which the output will be logged. More...

void	SetOutputProperties (std::vector< FGPropertyNode_ptr > &outputProperties)
	Set the list of properties that should be output for this output instance. More...

void	SetRateHz (double rtHz)
	Set the output rate for this output instances. More...

virtual void	SetStartNewOutput (void)
	Reset the output prior to a restart of the simulation. More...

void	SetSubSystems (int subSystems)
	Set the activated subsystems for this output instance. More...

bool	Toggle (void)
	Toggles the output generation. More...

Public Member Functions inherited from FGModel
	FGModel (FGFDMExec *)
	Constructor.

	~FGModel () override
	Destructor.

virtual SGPath	FindFullPathName (const SGPath &path) const

FGFDMExec *	GetExec (void)

const std::string &	GetName (void)

unsigned int	GetRate (void)
	Get the output rate for the model in frames.

virtual bool	Run (bool Holding)
	Runs the model; called by the Executive. More...

void	SetPropertyManager (FGPropertyManager *fgpm)

void	SetRate (unsigned int tt)
	Set the ouput rate for the model in frames.

Public Member Functions inherited from FGModelFunctions
std::string	GetFunctionStrings (const std::string &delimeter) const
	Gets the strings for the current set of functions. More...

std::string	GetFunctionValues (const std::string &delimeter) const
	Gets the function values. More...

FGFunction *	GetPreFunction (const std::string &name)
	Get one of the "pre" function. More...

bool	Load (Element el, FGFDMExec fdmex, std::string prefix="")

void	PostLoad (Element el, FGFDMExec fdmex, std::string prefix="")

void	PreLoad (Element el, FGFDMExec fdmex, std::string prefix="")

void	RunPostFunctions (void)

void	RunPreFunctions (void)

Public Member Functions inherited from FGJSBBase
	FGJSBBase ()
	Constructor for FGJSBBase.

virtual	~FGJSBBase ()
	Destructor for FGJSBBase.

void	PutMessage (const Message &msg)
	Places a Message structure on the Message queue. More...

void	PutMessage (const std::string &text)
	Creates a message with the given text and places it on the queue. More...

void	PutMessage (const std::string &text, bool bVal)
	Creates a message with the given text and boolean value and places it on the queue. More...

void	PutMessage (const std::string &text, int iVal)
	Creates a message with the given text and integer value and places it on the queue. More...

void	PutMessage (const std::string &text, double dVal)
	Creates a message with the given text and double value and places it on the queue. More...

int	SomeMessages (void) const
	Reads the message on the queue (but does not delete it). More...

void	ProcessMessage (void)
	Reads the message on the queue and removes it from the queue. More...

Message *	ProcessNextMessage (void)
	Reads the next message on the queue and removes it from the queue. More...

void	disableHighLighting (void)
	Disables highlighting in the console output.

Public Attributes
enum JSBSim::FGOutputType::eSubSystems	subsystems

Protected Member Functions
void	Debug (int from) override

Protected Member Functions inherited from FGModel
bool	Upload (Element *el, bool preLoad)
	Uploads this model in memory. More...

Protected Attributes
FGAccelerations *	Accelerations

FGAerodynamics *	Aerodynamics

FGAircraft *	Aircraft

FGAtmosphere *	Atmosphere

FGAuxiliary *	Auxiliary

FGBuoyantForces *	BuoyantForces

bool	enabled

FGExternalReactions *	ExternalReactions

FGFCS *	FCS

FGGroundReactions *	GroundReactions

FGMassBalance *	MassBalance

std::vector< std::string >	OutputCaptions

unsigned int	OutputIdx

std::vector< FGPropertyValue * >	OutputParameters

FGPropagate *	Propagate

FGPropulsion *	Propulsion

int	SubSystems

FGWinds *	Winds

Protected Attributes inherited from FGModel
unsigned int	exe_ctr

FGFDMExec *	FDMExec

std::string	Name

FGPropertyManager *	PropertyManager

unsigned int	rate

Protected Attributes inherited from FGModelFunctions
FGPropertyReader	LocalProperties

std::vector< FGFunction * >	PostFunctions

std::vector< FGFunction * >	PreFunctions

Additional Inherited Members
Static Public Member Functions inherited from FGJSBBase
static const std::string &	GetVersion (void)
	Returns the version number of JSBSim. More...

static constexpr double	KelvinToFahrenheit (double kelvin)
	Converts from degrees Kelvin to degrees Fahrenheit. More...

static constexpr double	CelsiusToRankine (double celsius)
	Converts from degrees Celsius to degrees Rankine. More...

static constexpr double	RankineToCelsius (double rankine)
	Converts from degrees Rankine to degrees Celsius. More...

static constexpr double	KelvinToRankine (double kelvin)
	Converts from degrees Kelvin to degrees Rankine. More...

static constexpr double	RankineToKelvin (double rankine)
	Converts from degrees Rankine to degrees Kelvin. More...

static constexpr double	FahrenheitToCelsius (double fahrenheit)
	Converts from degrees Fahrenheit to degrees Celsius. More...

static constexpr double	CelsiusToFahrenheit (double celsius)
	Converts from degrees Celsius to degrees Fahrenheit. More...

static constexpr double	CelsiusToKelvin (double celsius)
	Converts from degrees Celsius to degrees Kelvin. More...

static constexpr double	KelvinToCelsius (double kelvin)
	Converts from degrees Kelvin to degrees Celsius. More...

static constexpr double	FeetToMeters (double measure)
	Converts from feet to meters. More...

static double	PitotTotalPressure (double mach, double p)
	Compute the total pressure in front of the Pitot tube. More...

static double	MachFromImpactPressure (double qc, double p)
	Compute the Mach number from the differential pressure (qc) and the static pressure. More...

static double	VcalibratedFromMach (double mach, double p)
	Calculate the calibrated airspeed from the Mach number. More...

static double	MachFromVcalibrated (double vcas, double p)
	Calculate the Mach number from the calibrated airspeed.Based on the formulas in the US Air Force Aircraft Performance Flight Testing Manual (AFFTC-TIH-99-01). More...

static bool	EqualToRoundoff (double a, double b)
	Finite precision comparison. More...

static bool	EqualToRoundoff (float a, float b)
	Finite precision comparison. More...

static bool	EqualToRoundoff (float a, double b)
	Finite precision comparison. More...

static bool	EqualToRoundoff (double a, float b)
	Finite precision comparison. More...

static constexpr double	Constrain (double min, double value, double max)
	Constrain a value between a minimum and a maximum value.

static constexpr double	sign (double num)

static double	GaussianRandomNumber (void)

Static Public Attributes inherited from FGJSBBase
static char	highint [5] = {27, '[', '1', 'm', '\0' }
	highlights text

static char	halfint [5] = {27, '[', '2', 'm', '\0' }
	low intensity text

static char	normint [6] = {27, '[', '2', '2', 'm', '\0' }
	normal intensity text

static char	reset [5] = {27, '[', '0', 'm', '\0' }
	resets text properties

static char	underon [5] = {27, '[', '4', 'm', '\0' }
	underlines text

static char	underoff [6] = {27, '[', '2', '4', 'm', '\0' }
	underline off

static char	fgblue [6] = {27, '[', '3', '4', 'm', '\0' }
	blue text

static char	fgcyan [6] = {27, '[', '3', '6', 'm', '\0' }
	cyan text

static char	fgred [6] = {27, '[', '3', '1', 'm', '\0' }
	red text

static char	fggreen [6] = {27, '[', '3', '2', 'm', '\0' }
	green text

static char	fgdef [6] = {27, '[', '3', '9', 'm', '\0' }
	default text

static short	debug_lvl = 1

Static Protected Member Functions inherited from FGJSBBase
static std::string	CreateIndexedPropertyName (const std::string &Property, int index)

Static Protected Attributes inherited from FGJSBBase
static Message	localMsg

static std::queue< Message >	Messages

static unsigned int	messageId = 0

static constexpr double	radtodeg = 180. / M_PI

static constexpr double	degtorad = M_PI / 180.

static constexpr double	hptoftlbssec = 550.0

static constexpr double	psftoinhg = 0.014138

static constexpr double	psftopa = 47.88

static constexpr double	ktstofps = 1.68781

static constexpr double	fpstokts = 1.0 / ktstofps

static constexpr double	inchtoft = 1.0/12.0

static constexpr double	fttom = 0.3048

static constexpr double	m3toft3 = 1.0/(fttomfttomfttom)

static constexpr double	in3tom3 = inchtoftinchtoftinchtoft/m3toft3

static constexpr double	inhgtopa = 3386.38

static constexpr double	slugtolb = 32.174049
	Note that definition of lbtoslug by the inverse of slugtolb and not to a different constant you can also get from some tables will make lbtoslug*slugtolb == 1 up to the magnitude of roundoff. More...

static constexpr double	lbtoslug = 1.0/slugtolb

static constexpr double	kgtolb = 2.20462

static constexpr double	kgtoslug = 0.06852168

static const std::string	needed_cfg_version = "2.0"

static const std::string	JSBSim_version = JSBSIM_VERSION " " __DATE__ " " __TIME__

static int	gaussian_random_number_phase = 0

Member Enumeration Documentation

◆ eSubSystems

enum eSubSystems

Subsystem types for specifying which will be output in the FDM data logging.

Enumerator
ssSimulation	Subsystem: Simulation (= 1)
ssAerosurfaces	Subsystem: Aerosurfaces (= 2)
ssRates	Subsystem: Body rates (= 4)
ssVelocities	Subsystem: Velocities (= 8)
ssForces	Subsystem: Forces (= 16)
ssMoments	Subsystem: Moments (= 32)
ssAtmosphere	Subsystem: Atmosphere (= 64)
ssMassProps	Subsystem: Mass Properties (= 128)
ssAeroFunctions	Subsystem: Coefficients (= 256)
ssPropagate	Subsystem: Propagate (= 512)
ssGroundReactions	Subsystem: Ground Reactions (= 1024)
ssFCS	Subsystem: FCS (= 2048)
ssPropulsion	Subsystem: Propulsion (= 4096)

Definition at line 175 of file FGOutputType.h.

175 { ssSimulation = 1, ssAerosurfaces = 2, ssRates = 4, ssVelocities = 8, ssForces = 16, ssMoments = 32, ssAtmosphere = 64, ssMassProps = 128, ssAeroFunctions = 256, ssPropagate = 512, ssGroundReactions = 1024, ssFCS = 2048, ssPropulsion = 4096

189 } subsystems;

Constructor & Destructor Documentation

◆ FGOutputType()

FGOutputType ( FGFDMExec * fdmex )

Constructor (implement the FGModel interface).

Parameters

fdmex a pointer to the parent executive object

Definition at line 57 of file FGOutputType.cpp.

                                            :
   FGModel(fdmex),
   SubSystems(0),
   enabled(true)
 {
   Aerodynamics = FDMExec->GetAerodynamics();
   Auxiliary = FDMExec->GetAuxiliary();
   Aircraft = FDMExec->GetAircraft();
   Atmosphere = FDMExec->GetAtmosphere();
   Winds = FDMExec->GetWinds();
   Propulsion = FDMExec->GetPropulsion();
   MassBalance = FDMExec->GetMassBalance();
   Propagate = FDMExec->GetPropagate();
   Accelerations = FDMExec->GetAccelerations();
   FCS = FDMExec->GetFCS();
   GroundReactions = FDMExec->GetGroundReactions();
   ExternalReactions = FDMExec->GetExternalReactions();
   BuoyantForces = FDMExec->GetBuoyantForces();

   Debug(0);
 }

Here is the call graph for this function:

Member Function Documentation

◆ GetOutputName()

virtual const std::string& GetOutputName ( void ) const

inlinevirtual

Get the name identifier to which the output will be directed.

Returns: the name identifier.

Definition at line 133 of file FGOutputType.h.

133 { return Name; }

◆ Load()

bool Load ( Element * el )

overridevirtual

Init the output directives from an XML file (implement the FGModel interface).

Parameters

element XML Element that is pointing to the output directives

Reimplemented from FGModel.

Definition at line 102 of file FGOutputType.cpp.

 {
   if (element->FindElementValue("simulation") == string("ON"))
     SubSystems += ssSimulation;
   if (element->FindElementValue("aerosurfaces") == string("ON"))
     SubSystems += ssAerosurfaces;
   if (element->FindElementValue("rates") == string("ON"))
     SubSystems += ssRates;
   if (element->FindElementValue("velocities") == string("ON"))
     SubSystems += ssVelocities;
   if (element->FindElementValue("forces") == string("ON"))
     SubSystems += ssForces;
   if (element->FindElementValue("moments") == string("ON"))
     SubSystems += ssMoments;
   if (element->FindElementValue("atmosphere") == string("ON"))
     SubSystems += ssAtmosphere;
   if (element->FindElementValue("massprops") == string("ON"))
     SubSystems += ssMassProps;
   if (element->FindElementValue("position") == string("ON"))
     SubSystems += ssPropagate;
   if (element->FindElementValue("coefficients") == string("ON") || element->FindElementValue("aerodynamics") == string("ON"))
     SubSystems += ssAeroFunctions;
   if (element->FindElementValue("ground_reactions") == string("ON"))
     SubSystems += ssGroundReactions;
   if (element->FindElementValue("fcs") == string("ON"))
     SubSystems += ssFCS;
   if (element->FindElementValue("propulsion") == string("ON"))
     SubSystems += ssPropulsion;

   Element *property_element = element->FindElement("property");

   while (property_element) {
     string property_str = property_element->GetDataLine();
     FGPropertyNode* node = PropertyManager->GetNode(property_str);
     if (!node) {
       cerr << property_element->ReadFrom()
            << fgred << highint << endl << "  No property by the name "
            << property_str << " has been defined. This property will " << endl
            << "  not be logged. You should check your configuration file."
            << reset << endl;
     } else {
       if (property_element->HasAttribute("apply")) {
         string function_str = property_element->GetAttributeValue("apply");
         FGTemplateFunc* f = FDMExec->GetTemplateFunc(function_str);
         if (f)
           OutputParameters.push_back(new FGFunctionValue(node, f));
         else {
           cerr << property_element->ReadFrom()
                << fgred << highint << "  No function by the name "
                << function_str << " has been defined. This property will "
                << "not be logged. You should check your configuration file."
                << reset << endl;
         }
       }
       else
         OutputParameters.push_back(new FGPropertyValue(node));

       if (property_element->HasAttribute("caption"))
         OutputCaptions.push_back(property_element->GetAttributeValue("caption"));
       else
         OutputCaptions.push_back("");
     }
     property_element = element->FindNextElement("property");
   }

   double outRate = 1.0;
   if (element->HasAttribute("rate"))
     outRate = element->GetAttributeValueAsNumber("rate");

   SetRateHz(outRate);

   return true;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

virtual void Print ( void )

pure virtual

Generate the output.

This is a pure method so it must be implemented by the classes that inherits from FGOutputType. The Print name may not be relevant to all outputs but it has been kept for backward compatibility.

Implemented in FGOutputFile, FGOutputSocket, FGOutputTextFile, and FGOutputFG.

Here is the caller graph for this function:

◆ Run()

bool Run ( void )

Executes the output directives (implement the FGModel interface).

This method checks that the current time step matches the output rate and calls the registered "pre" functions, the output generation and finally the "post" functions.

Returns: false if no error.

Definition at line 188 of file FGOutputType.cpp.

 {
   if (FGModel::Run(false)) return true;
   if (!enabled) return true;

   RunPreFunctions();
   Print();
   RunPostFunctions();

   Debug(4);

   return false;
 }

Here is the call graph for this function:

◆ SetIdx()

void SetIdx ( unsigned int idx )

Set the idx for this output instance.

Parameters

idx	ID of the output instance that is constructed

Definition at line 91 of file FGOutputType.cpp.

 {
   string outputProp = CreateIndexedPropertyName("simulation/output", idx);

   PropertyManager->Tie(outputProp + "/log_rate_hz", this, &FGOutputType::GetRateHz, &FGOutputType::SetRateHz);
   PropertyManager->Tie(outputProp + "/enabled", &enabled);
   OutputIdx = idx;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetOutputName()

virtual void SetOutputName ( const std::string & name )

inlinevirtual

Overwrites the name identifier under which the output will be logged.

This method is taken into account if it is called before FGFDMExec::RunIC() otherwise it is ignored until the next call to SetStartNewOutput().

Parameters

name new name

Reimplemented in FGOutputSocket, and FGOutputFile.

Definition at line 129 of file FGOutputType.h.

129 { Name = name; }

Here is the caller graph for this function:

◆ SetOutputProperties()

void SetOutputProperties ( std::vector< FGPropertyNode_ptr > & outputProperties )

Set the list of properties that should be output for this output instance.

Parameters

outputProperties list of properties that should be output

Definition at line 225 of file FGOutputType.cpp.

 {
   for (auto prop: outputProperties)
     OutputParameters.push_back(new FGPropertyValue(prop));
 }

Here is the caller graph for this function:

◆ SetRateHz()

void SetRateHz ( double rtHz )

Set the output rate for this output instances.

Parameters

rtHz	new output rate in Hz

Definition at line 204 of file FGOutputType.cpp.

 {
   rtHz = rtHz>1000?1000:(rtHz<0?0:rtHz);
   if (rtHz > 0) {
     SetRate(0.5 + 1.0/(FDMExec->GetDeltaT()*rtHz));
     Enable();
   } else {
     SetRate(1);
     Disable();
   }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetStartNewOutput()

virtual void SetStartNewOutput ( void )

inlinevirtual

Reset the output prior to a restart of the simulation.

This method should be called when the simulation is restarted with, for example, new initial conditions. When this method is executed the output instance can take special actions such as closing the current output file and open a new one with a different name.

Reimplemented in FGOutputFile.

Definition at line 163 of file FGOutputType.h.

163 {}

◆ SetSubSystems()

void SetSubSystems ( int subSystems )

inline

Set the activated subsystems for this output instance.

Parameters

subSystems	bitfield that describes the activated subsystems
outputProperties	list of properties that should be output

Definition at line 117 of file FGOutputType.h.

117 { SubSystems = subSystems; }

Here is the caller graph for this function:

◆ Toggle()

bool Toggle ( void )

inline

Toggles the output generation.

Returns: the output generation status i.e. true if the output has been enabled, false if the output has been disabled.

Definition at line 172 of file FGOutputType.h.

172 {enabled = !enabled; return enabled;}

The documentation for this class was generated from the following files:

Detailed Description

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ eSubSystems

Constructor & Destructor Documentation

◆ FGOutputType()

Member Function Documentation

◆ GetOutputName()

◆ Load()

◆ Print()

◆ Run()

◆ SetIdx()

◆ SetOutputName()

◆ SetOutputProperties()

◆ SetRateHz()

◆ SetStartNewOutput()

◆ SetSubSystems()

◆ Toggle()
