Detailed Description

Handles simulation output.

OUTPUT section definition

The following specifies the way that JSBSim writes out data.

    NAME is the filename you want the output to go to

    TYPE can be:
      CSV         Comma separated data. If a filename is supplied then the
                  data goes to that file. If "COUT" or "cout" is specified, the
                  data goes to stdout. If the filename is a null filename the
                  data goes to stdout, as well.
      SOCKET      Will eventually send data to a socket output, where NAME
                  would then be the IP address of the machine the data should
                  be sent to. DON'T USE THIS YET!
      FLIGHTGEAR  A socket is created for sending binary data packets to
                  an external instance of FlightGear for visuals.  Parameters
                  defining the socket are given on the <output> line.
      TABULAR     Columnar data.
      TERMINAL    Output to terminal. NOT IMPLEMENTED YET!
      NONE        Specifies to do nothing. This setting makes it easy to turn on
                  and off the data output without having to mess with anything
                  else.

      Examples:

<output name="B737_datalog.csv" type="CSV" rate="20">
   <property> velocities/vc-kts </property>
   <velocities> ON </velocities>
</output>

    The arguments that can be supplied, currently, are:

    RATE_IN_HZ  An integer rate in times-per-second that the data is output.
                This value may not be *exactly* what you want, due to the
                dependence on dt, the cycle rate for the FDM.

    The following parameters tell which subsystems of data to output:

    simulation       ON|OFF
    atmosphere       ON|OFF
    massprops        ON|OFF
    aerosurfaces     ON|OFF
    rates            ON|OFF
    velocities       ON|OFF
    forces           ON|OFF
    moments          ON|OFF
    position         ON|OFF
    coefficients     ON|OFF
    ground_reactions ON|OFF
    fcs              ON|OFF
    propulsion       ON|OFF

NOTE that Time is always output with the data.

The class FGOutput is the manager of the outputs requested by the user. It manages a list of instances derived from the abstract class FGOutputType.

Definition at line 125 of file FGOutput.h.

#include <FGOutput.h>

Inheritance diagram for FGOutput:

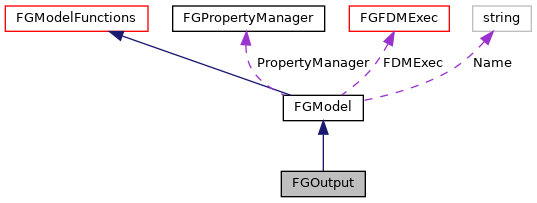

Collaboration diagram for FGOutput:

Public Member Functions
	FGOutput (FGFDMExec *)

void	Disable (void)
	Disables the output generation for all output instances.

void	Enable (void)
	Enables the output generation for all output instances.

SGPath	FindFullPathName (const SGPath &path) const override

void	ForceOutput (int idx)
	Force an output instance to generate its output. More...

std::string	GetOutputName (unsigned int idx) const
	Get the name identifier to which the output will be directed. More...

bool	InitModel (void) override
	Initializes the instance. More...

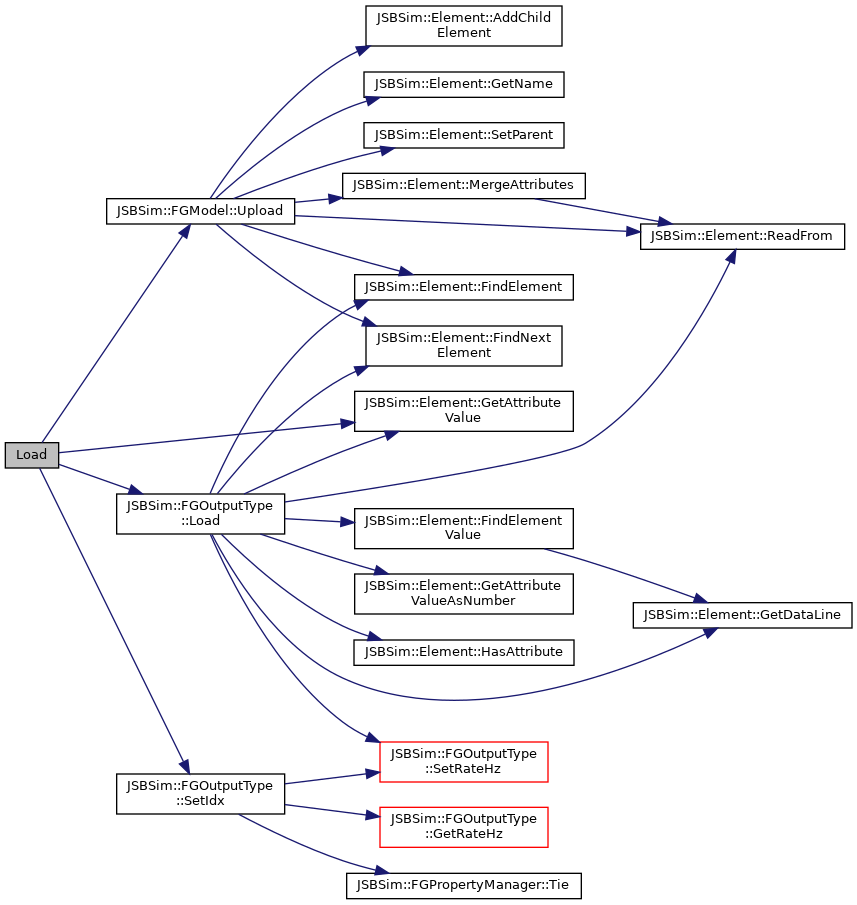

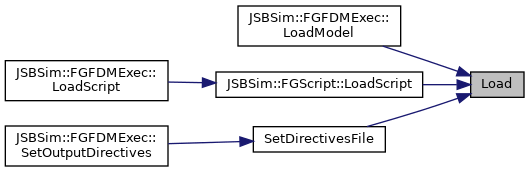

bool	Load (Element *el, const SGPath &dir=SGPath())
	Load the output directives and adds a new output instance to the Output Manager list. More...

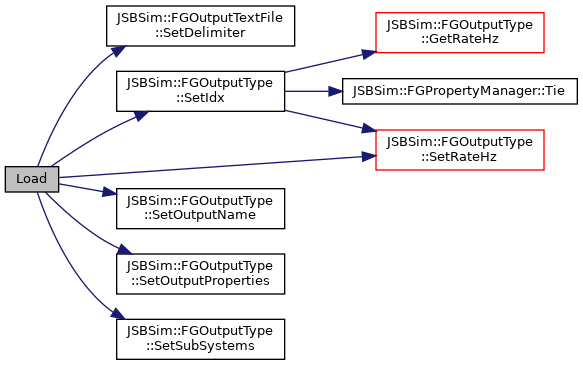

bool	Load (int subSystems, std::string protocol, std::string type, std::string port, std::string name, double outRate, std::vector< FGPropertyNode_ptr > &outputProperties)
	Load the output directives and adds a new output instance to the Output Manager list. More...

void	Print (void)
	Makes all the output instances to generate their ouput. More...

bool	Run (bool Holding) override
	Runs the Output model; called by the Executive. More...

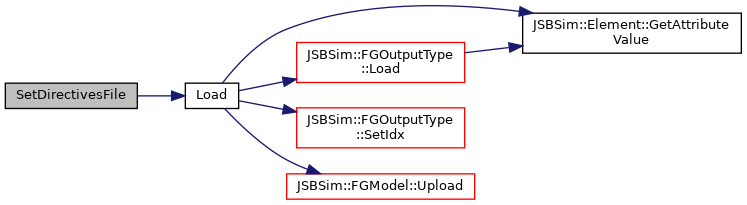

bool	SetDirectivesFile (const SGPath &fname)
	Adds a new output instance to the Output Manager. More...

bool	SetOutputName (unsigned int idx, const std::string &name)
	Overwrites the name identifier under which the output will be logged. More...

void	SetRateHz (double rate)
	Modifies the output rate for all output instances. More...

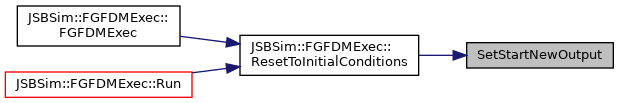

void	SetStartNewOutput (void)
	Reset the output prior to a restart of the simulation. More...

bool	Toggle (int idx)
	Toggles the output generation of each ouput instance. More...

Public Member Functions inherited from FGModel
	FGModel (FGFDMExec *)
	Constructor.

	~FGModel () override
	Destructor.

FGFDMExec *	GetExec (void)

const std::string &	GetName (void)

unsigned int	GetRate (void)
	Get the output rate for the model in frames.

virtual bool	Load (Element *el)

void	SetPropertyManager (FGPropertyManager *fgpm)

void	SetRate (unsigned int tt)
	Set the ouput rate for the model in frames.

Public Member Functions inherited from FGModelFunctions
std::string	GetFunctionStrings (const std::string &delimeter) const
	Gets the strings for the current set of functions. More...

std::string	GetFunctionValues (const std::string &delimeter) const
	Gets the function values. More...

FGFunction *	GetPreFunction (const std::string &name)
	Get one of the "pre" function. More...

bool	Load (Element el, FGFDMExec fdmex, std::string prefix="")

void	PostLoad (Element el, FGFDMExec fdmex, std::string prefix="")

void	PreLoad (Element el, FGFDMExec fdmex, std::string prefix="")

void	RunPostFunctions (void)

void	RunPreFunctions (void)

Public Member Functions inherited from FGJSBBase
	FGJSBBase ()
	Constructor for FGJSBBase.

virtual	~FGJSBBase ()
	Destructor for FGJSBBase.

void	PutMessage (const Message &msg)
	Places a Message structure on the Message queue. More...

void	PutMessage (const std::string &text)
	Creates a message with the given text and places it on the queue. More...

void	PutMessage (const std::string &text, bool bVal)
	Creates a message with the given text and boolean value and places it on the queue. More...

void	PutMessage (const std::string &text, int iVal)
	Creates a message with the given text and integer value and places it on the queue. More...

void	PutMessage (const std::string &text, double dVal)
	Creates a message with the given text and double value and places it on the queue. More...

int	SomeMessages (void) const
	Reads the message on the queue (but does not delete it). More...

void	ProcessMessage (void)
	Reads the message on the queue and removes it from the queue. More...

Message *	ProcessNextMessage (void)
	Reads the next message on the queue and removes it from the queue. More...

void	disableHighLighting (void)
	Disables highlighting in the console output.

Additional Inherited Members
Public Types inherited from FGJSBBase
enum	{ eL = 1, eM, eN }
	Moments L, M, N.

enum	{ eP = 1, eQ, eR }
	Rates P, Q, R.

enum	{ eU = 1, eV, eW }
	Velocities U, V, W.

enum	{ eX = 1, eY, eZ }
	Positions X, Y, Z.

enum	{ ePhi = 1, eTht, ePsi }
	Euler angles Phi, Theta, Psi.

enum	{ eDrag = 1, eSide, eLift }
	Stability axis forces, Drag, Side force, Lift.

enum	{ eRoll = 1, ePitch, eYaw }
	Local frame orientation Roll, Pitch, Yaw.

enum	{ eNorth = 1, eEast, eDown }
	Local frame position North, East, Down.

enum	{ eLat = 1, eLong, eRad }
	Locations Radius, Latitude, Longitude.

enum	{ inNone = 0, inDegrees, inRadians, inMeters, inFeet }
	Conversion specifiers.

Static Public Member Functions inherited from FGJSBBase
static const std::string &	GetVersion (void)
	Returns the version number of JSBSim. More...

static constexpr double	KelvinToFahrenheit (double kelvin)
	Converts from degrees Kelvin to degrees Fahrenheit. More...

static constexpr double	CelsiusToRankine (double celsius)
	Converts from degrees Celsius to degrees Rankine. More...

static constexpr double	RankineToCelsius (double rankine)
	Converts from degrees Rankine to degrees Celsius. More...

static constexpr double	KelvinToRankine (double kelvin)
	Converts from degrees Kelvin to degrees Rankine. More...

static constexpr double	RankineToKelvin (double rankine)
	Converts from degrees Rankine to degrees Kelvin. More...

static constexpr double	FahrenheitToCelsius (double fahrenheit)
	Converts from degrees Fahrenheit to degrees Celsius. More...

static constexpr double	CelsiusToFahrenheit (double celsius)
	Converts from degrees Celsius to degrees Fahrenheit. More...

static constexpr double	CelsiusToKelvin (double celsius)
	Converts from degrees Celsius to degrees Kelvin. More...

static constexpr double	KelvinToCelsius (double kelvin)
	Converts from degrees Kelvin to degrees Celsius. More...

static constexpr double	FeetToMeters (double measure)
	Converts from feet to meters. More...

static double	PitotTotalPressure (double mach, double p)
	Compute the total pressure in front of the Pitot tube. More...

static double	MachFromImpactPressure (double qc, double p)
	Compute the Mach number from the differential pressure (qc) and the static pressure. More...

static double	VcalibratedFromMach (double mach, double p)
	Calculate the calibrated airspeed from the Mach number. More...

static double	MachFromVcalibrated (double vcas, double p)
	Calculate the Mach number from the calibrated airspeed.Based on the formulas in the US Air Force Aircraft Performance Flight Testing Manual (AFFTC-TIH-99-01). More...

static bool	EqualToRoundoff (double a, double b)
	Finite precision comparison. More...

static bool	EqualToRoundoff (float a, float b)
	Finite precision comparison. More...

static bool	EqualToRoundoff (float a, double b)
	Finite precision comparison. More...

static bool	EqualToRoundoff (double a, float b)
	Finite precision comparison. More...

static constexpr double	Constrain (double min, double value, double max)
	Constrain a value between a minimum and a maximum value.

static constexpr double	sign (double num)

static double	GaussianRandomNumber (void)

Static Public Attributes inherited from FGJSBBase
static char	highint [5] = {27, '[', '1', 'm', '\0' }
	highlights text

static char	halfint [5] = {27, '[', '2', 'm', '\0' }
	low intensity text

static char	normint [6] = {27, '[', '2', '2', 'm', '\0' }
	normal intensity text

static char	reset [5] = {27, '[', '0', 'm', '\0' }
	resets text properties

static char	underon [5] = {27, '[', '4', 'm', '\0' }
	underlines text

static char	underoff [6] = {27, '[', '2', '4', 'm', '\0' }
	underline off

static char	fgblue [6] = {27, '[', '3', '4', 'm', '\0' }
	blue text

static char	fgcyan [6] = {27, '[', '3', '6', 'm', '\0' }
	cyan text

static char	fgred [6] = {27, '[', '3', '1', 'm', '\0' }
	red text

static char	fggreen [6] = {27, '[', '3', '2', 'm', '\0' }
	green text

static char	fgdef [6] = {27, '[', '3', '9', 'm', '\0' }
	default text

static short	debug_lvl = 1

Protected Member Functions inherited from FGModel
bool	Upload (Element *el, bool preLoad)
	Uploads this model in memory. More...

Static Protected Member Functions inherited from FGJSBBase
static std::string	CreateIndexedPropertyName (const std::string &Property, int index)

Protected Attributes inherited from FGModel
unsigned int	exe_ctr

FGFDMExec *	FDMExec

std::string	Name

FGPropertyManager *	PropertyManager

unsigned int	rate

Protected Attributes inherited from FGModelFunctions
FGPropertyReader	LocalProperties

std::vector< FGFunction * >	PostFunctions

std::vector< FGFunction * >	PreFunctions

Static Protected Attributes inherited from FGJSBBase
static Message	localMsg

static std::queue< Message >	Messages

static unsigned int	messageId = 0

static constexpr double	radtodeg = 180. / M_PI

static constexpr double	degtorad = M_PI / 180.

static constexpr double	hptoftlbssec = 550.0

static constexpr double	psftoinhg = 0.014138

static constexpr double	psftopa = 47.88

static constexpr double	ktstofps = 1.68781

static constexpr double	fpstokts = 1.0 / ktstofps

static constexpr double	inchtoft = 1.0/12.0

static constexpr double	fttom = 0.3048

static constexpr double	m3toft3 = 1.0/(fttomfttomfttom)

static constexpr double	in3tom3 = inchtoftinchtoftinchtoft/m3toft3

static constexpr double	inhgtopa = 3386.38

static constexpr double	slugtolb = 32.174049
	Note that definition of lbtoslug by the inverse of slugtolb and not to a different constant you can also get from some tables will make lbtoslug*slugtolb == 1 up to the magnitude of roundoff. More...

static constexpr double	lbtoslug = 1.0/slugtolb

static constexpr double	kgtolb = 2.20462

static constexpr double	kgtoslug = 0.06852168

static const std::string	needed_cfg_version = "2.0"

static const std::string	JSBSim_version = JSBSIM_VERSION " " __DATE__ " " __TIME__

static int	gaussian_random_number_phase = 0

Member Function Documentation

◆ ForceOutput()

void ForceOutput ( int idx )

Force an output instance to generate its output.

The code executed is basically the same than the code of the method Print() except that the ouput is limited to the instance identified by the parameter of the method.

Parameters

idx	ID of the instance that will generate its ouput

Definition at line 143 of file FGOutput.cpp.

 {
   if (idx >= (int)0 && idx < (int)OutputTypes.size())
     OutputTypes[idx]->Print();
 }

Here is the caller graph for this function:

◆ GetOutputName()

string GetOutputName ( unsigned int idx ) const

Get the name identifier to which the output will be directed.

Parameters

idx	ID of the output instance from which the name identifier must be obtained

Returns: the name identifier.

Definition at line 161 of file FGOutput.cpp.

 {
   string name;

   if (idx < OutputTypes.size())
     name = OutputTypes[idx]->GetOutputName();
   return name;
 }

Here is the caller graph for this function:

◆ InitModel()

bool InitModel ( void )

overridevirtual

Initializes the instance.

This method is called by FGFDMExec::RunIC(). This is were the initialization of all classes derived from FGOutputType takes place. It is important that this method is not called prior to FGFDMExec::RunIC() so that the initialization process can be executed properly.

Returns: true if the execution succeeded.

Reimplemented from FGModel.

Definition at line 80 of file FGOutput.cpp.

 {
   bool ret = false;

   if (!FGModel::InitModel()) return false;

   for (auto output: OutputTypes)
     ret &= output->InitModel();

   return ret;
 }

◆ Load() [1/2]

bool Load	(	Element *	el,
		const SGPath &	dir = `SGPath()`
	)

Load the output directives and adds a new output instance to the Output Manager list.

Parameters

el	XMLElement that is pointing to the output directives
dir	optional directory path to load included files from

Returns: true if the execution succeeded.

Definition at line 238 of file FGOutput.cpp.

 {
   // Optional path to use for included files
   includePath = dir;

   // Perform base class Pre-Load
   if (!FGModel::Upload(document, false))
     return false;

   size_t idx = OutputTypes.size();
   string type = document->GetAttributeValue("type");
   FGOutputType* Output = 0;

   if (debug_lvl > 0) cout << endl << "  Output data set: " << idx << "  " << endl;

   type = to_upper(type);

   if (type == "CSV") {
     Output = new FGOutputTextFile(FDMExec);
   } else if (type == "TABULAR") {
     Output = new FGOutputTextFile(FDMExec);
   } else if (type == "SOCKET") {
     Output = new FGOutputSocket(FDMExec);
   } else if (type == "FLIGHTGEAR") {
     Output = new FGOutputFG(FDMExec);
   } else if (type == "TERMINAL") {
     // Not done yet
   } else if (type != string("NONE")) {
     cerr << "Unknown type of output specified in config file" << endl;
   }

   if (!Output) return false;

   Output->SetIdx(idx);
   Output->PreLoad(document, FDMExec);
   Output->Load(document);
   Output->PostLoad(document, FDMExec);

   OutputTypes.push_back(Output);

   Debug(2);
   return true;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Load() [2/2]

bool Load	(	int	subSystems,
		std::string	protocol,
		std::string	type,
		std::string	port,
		std::string	name,
		double	outRate,
		std::vector< FGPropertyNode_ptr > &	outputProperties
	)

Load the output directives and adds a new output instance to the Output Manager list.

Unlike the Load() method, the new output instance is not generated from output directives read in a XML file but from a list of parameters.

Parameters

subSystems	bitfield that describes the activated subsystems
protocol	network protocol for outputs directed to sockets
type	type of output
port	port to which the socket will be directed
name	file name to which the output will be directed
outRate	output rate in Hz
outputProperties	list of properties that should be output

Returns: true if the execution succeeded.

Definition at line 191 of file FGOutput.cpp.

 {
   size_t idx = OutputTypes.size();
   FGOutputType* Output = 0;

   if (debug_lvl > 0) cout << endl << "  Output data set: " << idx << endl;

   type = to_upper(type);

   if (type == "CSV") {
     FGOutputTextFile* OutputTextFile = new FGOutputTextFile(FDMExec);
     OutputTextFile->SetDelimiter(",");
     Output = OutputTextFile;
   } else if (type == "TABULAR") {
     FGOutputTextFile* OutputTextFile = new FGOutputTextFile(FDMExec);
     OutputTextFile->SetDelimiter("\t");
     Output = OutputTextFile;
   } else if (type == "SOCKET") {
     Output = new FGOutputSocket(FDMExec);
     name += ":" + port + "/" + protocol;
   } else if (type == "FLIGHTGEAR") {
     Output = new FGOutputFG(FDMExec);
     name += ":" + port + "/" + protocol;
   } else if (type == "TERMINAL") {
     // Not done yet
   } else if (type != string("NONE")) {
     cerr << "Unknown type of output specified in config file" << endl;
   }

   if (!Output) return false;

   Output->SetIdx(idx);
   Output->SetOutputName(name);
   Output->SetRateHz(outRate);
   Output->SetSubSystems(subSystems);
   Output->SetOutputProperties(outputProperties);

   OutputTypes.push_back(Output);

   Debug(2);
   return true;
 }

Here is the call graph for this function:

◆ Print()

void Print ( void )

Makes all the output instances to generate their ouput.

This method does not check that the time step at which the output is requested is consistent with the output rate RATE_IN_HZ. Although Print is not a relevant name for outputs like SOCKET or FLIGHGEAR, it has been kept for backward compatibility.

Definition at line 109 of file FGOutput.cpp.

 {
   for (auto output: OutputTypes)
     output->Print();
 }

◆ Run()

bool Run ( bool Holding )

overridevirtual

Runs the Output model; called by the Executive.

Can pass in a value indicating if the executive is directing the simulation to Hold.

Parameters

Holding if true, the executive has been directed to hold the sim from advancing time. Some models may ignore this flag, such as the Input model, which may need to be active to listen on a socket for the "Resume" command to be given.

Returns: false if no error

Reimplemented from FGModel.

Definition at line 94 of file FGOutput.cpp.

 {
   if (FDMExec->GetTrimStatus()) return true;
   if (FGModel::Run(Holding)) return true;
   if (Holding) return false;
   if (!enabled) return true;

   for (auto output: OutputTypes)
     output->Run();

   return false;
 }

Here is the call graph for this function:

◆ SetDirectivesFile()

bool SetDirectivesFile ( const SGPath & fname )

Adds a new output instance to the Output Manager.

The definition of the new output instance is read from a file.

Parameters

fname the name of the file from which the ouput directives should be read.

Returns: true if the execution succeeded.

Definition at line 172 of file FGOutput.cpp.

 {
   FGXMLFileRead XMLFile;
   Element* document = XMLFile.LoadXMLDocument(fname);
   if (!document) {
     stringstream s;
     s << "Could not read directive file: " << fname;
     throw BaseException(s.str());
   }

   bool result = Load(document);
   if (!result)
     cerr << endl << "Aircraft output element has problems in file " << fname << endl;

   return result;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetOutputName()

bool SetOutputName	(	unsigned int	idx,
		const std::string &	name
	)

Overwrites the name identifier under which the output will be logged.

This method is taken into account if it is called between Load() and FGFDMExec::RunIC() otherwise it is ignored until the next call to SetStartNewOutput().

Parameters

idx	ID of the instance which name identifier will be changed
name	new name

Returns: false if the instance does not exists.

Definition at line 151 of file FGOutput.cpp.

 {
   if (idx >= OutputTypes.size()) return false;

   OutputTypes[idx]->SetOutputName(name);
   return true;
 }

Here is the caller graph for this function:

◆ SetRateHz()

void SetRateHz ( double rate )

Modifies the output rate for all output instances.

Parameters

rate	new output rate in Hz

Definition at line 135 of file FGOutput.cpp.

 {
   for (auto output: OutputTypes)
     output->SetRateHz(rate);
 }

Here is the caller graph for this function:

◆ SetStartNewOutput()

void SetStartNewOutput ( void )

Reset the output prior to a restart of the simulation.

This method should be called when the simulation is restarted with, for example, new initial conditions. When this method is executed the output instances can take special actions such as closing the current output file and open a new one with a different name.

Definition at line 117 of file FGOutput.cpp.

 {
   for (auto output: OutputTypes)
     output->SetStartNewOutput();
 }

Here is the caller graph for this function:

◆ Toggle()

bool Toggle ( int idx )

Toggles the output generation of each ouput instance.

Parameters

idx	ID of the output instance which output generation will be toggled.

Returns: false if the instance does not exist otherwise returns the status of the output generation (i.e. true if the output has been enabled, false if the output has been disabled)

Definition at line 125 of file FGOutput.cpp.

 {
   if (idx >= (int)0 && idx < (int)OutputTypes.size())
     return OutputTypes[idx]->Toggle();

   return false;
 }

The documentation for this class was generated from the following files:

Detailed Description

Public Member Functions

Additional Inherited Members

Member Function Documentation

◆ ForceOutput()

◆ GetOutputName()

◆ InitModel()

◆ Load() [1/2]

◆ Load() [2/2]

◆ Print()

◆ Run()

◆ SetDirectivesFile()

◆ SetOutputName()

◆ SetRateHz()

◆ SetStartNewOutput()

◆ Toggle()
