FGScript Class Reference

Detailed Description

Encapsulates the JSBSim scripting capability.

Scripting support provided via FGScript.

There is support for scripting provided in the FGScript class. Commands are specified using the Scripting Directives for JSBSim. The script file is in XML format. A test condition (or conditions) can be set up in an event in a script and when the condition evaluates to true, the specified action[s] is/are taken. An event can be persistent, meaning that at every time the test condition first evaluates to true (toggling from false to true) then the specified set actions take place. An event can also be defined to execute or evaluate continuously while the condition is true. When the set of tests evaluates to true for a given condition, an item may be set to another value. This value may be a value, or a delta value, and the change from the current value to the new value can be either via a step action, a ramp, or an exponential approach. The speed of a ramp or exponential approach is specified via the time constant. Here is an example illustrating the format of the script file:

<?xml version="1.0"?>
<runscript name="C172-01A takeoff run">
  <!--
    This run is for testing the C172 altitude hold autopilot
  -->

  <use aircraft="c172x"/>
  <use initialize="reset00"/>
  <run start="0.0" end="3000" dt="0.0083333">

    <event name="engine start">
      <notify/>
      <condition>
        sim-time-sec >= 0.25
      </condition>
      <set name="fcs/throttle-cmd-norm" value="1.0" action="FG_RAMP" tc ="0.5"/>
      <set name="fcs/mixture-cmd-norm" value="0.87" action="FG_RAMP" tc ="0.5"/>
      <set name="propulsion/magneto_cmd" value="3"/>
      <set name="propulsion/starter_cmd" value="1"/>
    </event>

    <event name="set heading hold">
      <!-- Set Heading when reach 5 ft -->
      <notify/>
      <condition>
        position/h-agl-ft >= 5
      </condition>
      <set name="ap/heading_setpoint" value="200"/>
      <set name="ap/attitude_hold" value="0"/>
      <set name="ap/heading_hold" value="1"/>
    </event>

    <event name="set autopilot">
      <!-- Set Autopilot for 20 ft -->
      <notify/>
      <condition>
        aero/qbar-psf >= 4
      </condition>
      <set name="ap/altitude_setpoint" value="100.0" action="FG_EXP" tc ="2.0"/>
      <set name="ap/altitude_hold" value="1"/>
      <set name="fcs/flap-cmd-norm" value=".33"/>
    </event>

    <event name="set autopilot 2" persistent="true">
      <!-- Set Autopilot for 6000 ft -->
      <notify/>
      <condition>
        aero/qbar-psf > 5
      </condition>
      <set name="ap/altitude_setpoint" value="6000.0"/>
    </event>

    <event name="Time Notify">
      <notify/>
      <condition> sim-time-sec >= 500 </condition>
    </event>

    <event name="Time Notify">
      <notify/>
      <condition> sim-time-sec >= 1000 </condition>
    </event>

  </run>

</runscript>

The first line must always be present - it identifies the file as an XML format file. The second line identifies this file as a script file, and gives a descriptive name to the script file. Comments are next, delineated by the <!– and –> symbols. The aircraft and initialization files to be used are specified in the "use" lines. Next, comes the "run" section, where the conditions are described in "event" clauses.

Author

Jon S. Berndt

Definition at line 166 of file FGScript.h.

#include <FGScript.h>

Inheritance diagram for FGScript:

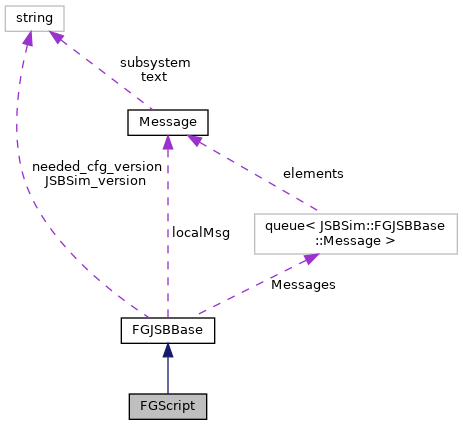

Collaboration diagram for FGScript:

Public Member Functions
	FGScript (FGFDMExec *exec)
	Default constructor.
	~FGScript ()
	Default destructor.
bool	LoadScript (const SGPath &script, double default_dT, const SGPath &initfile)
	Loads a script to drive JSBSim (usually in standalone mode). More...
void	ResetEvents (void)

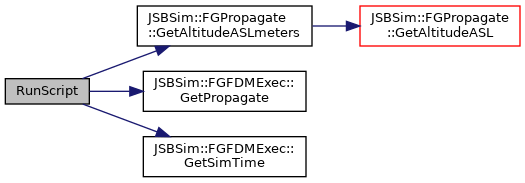

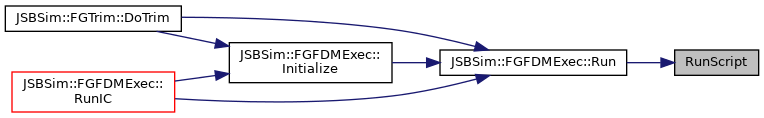

bool	RunScript (void)
	This function is called each pass through the executive Run() method IF scripting is enabled. More...
Public Member Functions inherited from FGJSBBase
	FGJSBBase ()
	Constructor for FGJSBBase.
virtual	~FGJSBBase ()
	Destructor for FGJSBBase.
void	PutMessage (const Message &msg)
	Places a Message structure on the Message queue. More...
void	PutMessage (const std::string &text)
	Creates a message with the given text and places it on the queue. More...
void	PutMessage (const std::string &text, bool bVal)
	Creates a message with the given text and boolean value and places it on the queue. More...
void	PutMessage (const std::string &text, int iVal)
	Creates a message with the given text and integer value and places it on the queue. More...
void	PutMessage (const std::string &text, double dVal)
	Creates a message with the given text and double value and places it on the queue. More...
int	SomeMessages (void) const
	Reads the message on the queue (but does not delete it). More...
void	ProcessMessage (void)
	Reads the message on the queue and removes it from the queue. More...
Message *	ProcessNextMessage (void)
	Reads the next message on the queue and removes it from the queue. More...
void	disableHighLighting (void)
	Disables highlighting in the console output.

Additional Inherited Members
Public Types inherited from FGJSBBase
enum	{ eL = 1, eM, eN }
	Moments L, M, N.
enum	{ eP = 1, eQ, eR }
	Rates P, Q, R.
enum	{ eU = 1, eV, eW }
	Velocities U, V, W.
enum	{ eX = 1, eY, eZ }
	Positions X, Y, Z.
enum	{ ePhi = 1, eTht, ePsi }
	Euler angles Phi, Theta, Psi.
enum	{ eDrag = 1, eSide, eLift }
	Stability axis forces, Drag, Side force, Lift.
enum	{ eRoll = 1, ePitch, eYaw }
	Local frame orientation Roll, Pitch, Yaw.
enum	{ eNorth = 1, eEast, eDown }
	Local frame position North, East, Down.
enum	{ eLat = 1, eLong, eRad }
	Locations Radius, Latitude, Longitude.
enum	{   inNone = 0, inDegrees, inRadians, inMeters,   inFeet }
	Conversion specifiers.
Static Public Member Functions inherited from FGJSBBase
static const std::string &	GetVersion (void)
	Returns the version number of JSBSim. More...
static constexpr double	KelvinToFahrenheit (double kelvin)
	Converts from degrees Kelvin to degrees Fahrenheit. More...
static constexpr double	CelsiusToRankine (double celsius)
	Converts from degrees Celsius to degrees Rankine. More...
static constexpr double	RankineToCelsius (double rankine)
	Converts from degrees Rankine to degrees Celsius. More...
static constexpr double	KelvinToRankine (double kelvin)
	Converts from degrees Kelvin to degrees Rankine. More...
static constexpr double	RankineToKelvin (double rankine)
	Converts from degrees Rankine to degrees Kelvin. More...
static constexpr double	FahrenheitToCelsius (double fahrenheit)
	Converts from degrees Fahrenheit to degrees Celsius. More...
static constexpr double	CelsiusToFahrenheit (double celsius)
	Converts from degrees Celsius to degrees Fahrenheit. More...
static constexpr double	CelsiusToKelvin (double celsius)
	Converts from degrees Celsius to degrees Kelvin. More...
static constexpr double	KelvinToCelsius (double kelvin)
	Converts from degrees Kelvin to degrees Celsius. More...
static constexpr double	FeetToMeters (double measure)
	Converts from feet to meters. More...
static double	PitotTotalPressure (double mach, double p)
	Compute the total pressure in front of the Pitot tube. More...
static double	MachFromImpactPressure (double qc, double p)
	Compute the Mach number from the differential pressure (qc) and the static pressure. More...
static double	VcalibratedFromMach (double mach, double p)
	Calculate the calibrated airspeed from the Mach number. More...
static double	MachFromVcalibrated (double vcas, double p)
	Calculate the Mach number from the calibrated airspeed.Based on the formulas in the US Air Force Aircraft Performance Flight Testing Manual (AFFTC-TIH-99-01). More...
static bool	EqualToRoundoff (double a, double b)
	Finite precision comparison. More...
static bool	EqualToRoundoff (float a, float b)
	Finite precision comparison. More...
static bool	EqualToRoundoff (float a, double b)
	Finite precision comparison. More...
static bool	EqualToRoundoff (double a, float b)
	Finite precision comparison. More...
static constexpr double	Constrain (double min, double value, double max)
	Constrain a value between a minimum and a maximum value.
static constexpr double	sign (double num)
static double	GaussianRandomNumber (void)
Static Public Attributes inherited from FGJSBBase
static char	highint [5] = {27, '[', '1', 'm', '\0' }
	highlights text
static char	halfint [5] = {27, '[', '2', 'm', '\0' }
	low intensity text
static char	normint [6] = {27, '[', '2', '2', 'm', '\0' }
	normal intensity text
static char	reset [5] = {27, '[', '0', 'm', '\0' }
	resets text properties
static char	underon [5] = {27, '[', '4', 'm', '\0' }
	underlines text
static char	underoff [6] = {27, '[', '2', '4', 'm', '\0' }
	underline off
static char	fgblue [6] = {27, '[', '3', '4', 'm', '\0' }
	blue text
static char	fgcyan [6] = {27, '[', '3', '6', 'm', '\0' }
	cyan text
static char	fgred [6] = {27, '[', '3', '1', 'm', '\0' }
	red text
static char	fggreen [6] = {27, '[', '3', '2', 'm', '\0' }
	green text
static char	fgdef [6] = {27, '[', '3', '9', 'm', '\0' }
	default text
static short	debug_lvl = 1
Static Protected Member Functions inherited from FGJSBBase
static std::string	CreateIndexedPropertyName (const std::string &Property, int index)
Static Protected Attributes inherited from FGJSBBase
static Message	localMsg
static std::queue< Message >	Messages
static unsigned int	messageId = 0
static constexpr double	radtodeg = 180. / M_PI
static constexpr double	degtorad = M_PI / 180.
static constexpr double	hptoftlbssec = 550.0
static constexpr double	psftoinhg = 0.014138
static constexpr double	psftopa = 47.88
static constexpr double	ktstofps = 1.68781
static constexpr double	fpstokts = 1.0 / ktstofps
static constexpr double	inchtoft = 1.0/12.0
static constexpr double	fttom = 0.3048
static constexpr double	m3toft3 = 1.0/(fttom*fttom*fttom)
static constexpr double	in3tom3 = inchtoft*inchtoft*inchtoft/m3toft3
static constexpr double	inhgtopa = 3386.38
static constexpr double	slugtolb = 32.174049
	Note that definition of lbtoslug by the inverse of slugtolb and not to a different constant you can also get from some tables will make lbtoslug*slugtolb == 1 up to the magnitude of roundoff. More...
static constexpr double	lbtoslug = 1.0/slugtolb
static constexpr double	kgtolb = 2.20462
static constexpr double	kgtoslug = 0.06852168
static const std::string	needed_cfg_version = "2.0"
static const std::string	JSBSim_version = JSBSIM_VERSION " " __DATE__ " " __TIME__
static int	gaussian_random_number_phase = 0

Member Function Documentation

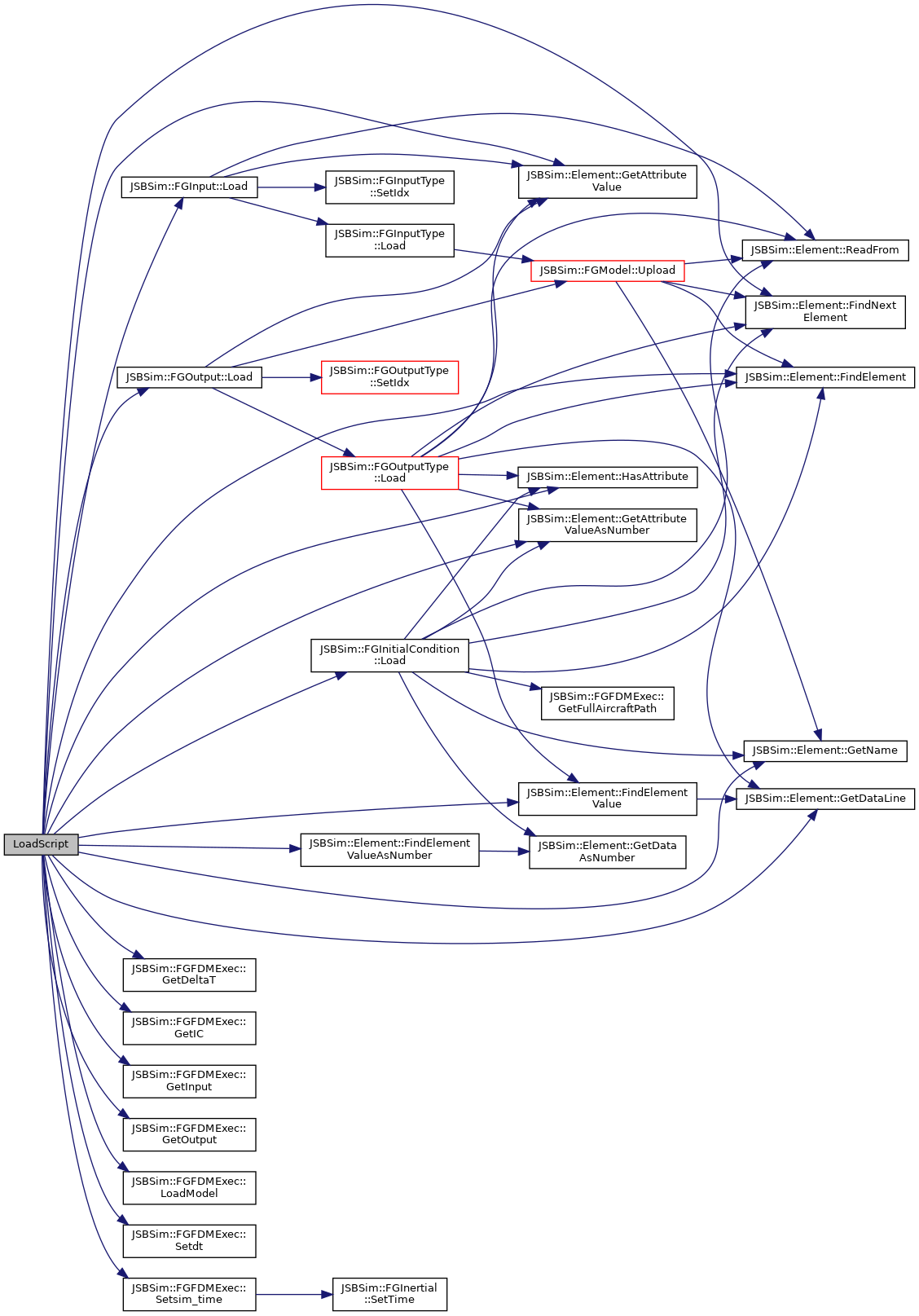

LoadScript()

bool LoadScript	(	const SGPath &	script,
		double	default_dT,
		const SGPath &	initfile
	)

Loads a script to drive JSBSim (usually in standalone mode).

The language is the Script Directives for JSBSim. If a simulation step size has been supplied on the command line, it will override the script specified simulation step size.

Parameters

script	the filename (including path name, if any) for the script.
default_dT	the default simulation step size if no value is specified in the script
initfile	An optional initialization file name passed in, empty by default. If a file name is passed in, it will override the one present in the script.

Returns

true if successful

Definition at line 91 of file FGScript.cpp.

{
  SGPath initialize;
  string aircraft="", prop_name="";
  string notifyPropertyName="";
  Element *element=0, *run_element=0, *event_element=0;
  Element *set_element=0;
  Element *notify_element = 0L, *notify_property_element = 0L;
  double dt = 0.0, value = 0.0;
  FGCondition *newCondition;

  FGXMLFileRead XMLFileRead;
  Element* document = XMLFileRead.LoadXMLDocument(script);

  if (!document) {
    cerr << "File: " << script << " could not be loaded." << endl;
    return false;
  }

  if (document->GetName() != string("runscript")) {
    cerr << "File: " << script << " is not a script file" << endl;
    return false;
  }

  ScriptName = document->GetAttributeValue("name");

 // First, find "run" element and set delta T

  run_element = document->FindElement("run");

  if (!run_element) {
    cerr << "No \"run\" element found in script." << endl;
    return false;
  }

  // Set sim timing

  if (run_element->HasAttribute("start"))
    StartTime = run_element->GetAttributeValueAsNumber("start");
  else
    StartTime = 0.0;
  FDMExec->Setsim_time(StartTime);
  if (run_element->HasAttribute("end")) {
    EndTime   = run_element->GetAttributeValueAsNumber("end");
  } else {
    cerr << "An end time (duration) for the script must be specified in the script <run> element." << endl;
    return false;
  }

  if (default_dT == 0.0)
    dt = run_element->GetAttributeValueAsNumber("dt");
  else {
    dt = default_dT;
    cout << endl << "Overriding simulation step size from the command line. New step size is: "
         << default_dT << " seconds (" << 1/default_dT << " Hz)" << endl << endl;
  }

  FDMExec->Setdt(dt);

  // Make sure that the desired time is reached and executed.
  EndTime += 0.99*FDMExec->GetDeltaT();

  // read aircraft and initialization files

  element = document->FindElement("use");
  if (element) {
    aircraft = element->GetAttributeValue("aircraft");
    if (!aircraft.empty()) {
      if (!FDMExec->LoadModel(aircraft))
        return false;
    } else {
      cerr << "Aircraft must be specified in use element." << endl;
      return false;
    }

    initialize = SGPath::fromLocal8Bit(element->GetAttributeValue("initialize").c_str());
    if (initfile.isNull()) {
      if (initialize.isNull()) {
        cerr << "Initialization file must be specified in use element." << endl;
        return false;
      }
    } else {
      cout << endl << "The initialization file specified in the script file ("
           << initialize << ") has been overridden with a specified file ("
           << initfile << ")." << endl;
      initialize = initfile;
    }

  } else {
    cerr << "No \"use\" directives in the script file." << endl;
    return false;
  }

  FGInitialCondition *IC=FDMExec->GetIC();
  if ( ! IC->Load( initialize )) {
    cerr << "Initialization unsuccessful" << endl;
    return false;
  }

  // Now, read input spec if given.
  element = document->FindElement("input");
  while (element) {
    if (!FDMExec->GetInput()->Load(element))
      return false;

    element = document->FindNextElement("input");
  }

  // Now, read output spec if given.
  element = document->FindElement("output");
  SGPath scriptDir = SGPath(script.dir());
  if (scriptDir.isNull())
    scriptDir = SGPath(".");

  while (element) {
    if (!FDMExec->GetOutput()->Load(element, scriptDir))
      return false;

    element = document->FindNextElement("output");
  }

  // Read local property/value declarations
  int saved_debug_lvl = debug_lvl;
  debug_lvl = 0; // Disable messages
  LocalProperties.Load(run_element, PropertyManager, true);
  debug_lvl = saved_debug_lvl;

  // Read "events" from script

  event_element = run_element->FindElement("event");
  while (event_element) { // event processing

    // Create the event structure
    struct event *newEvent = new struct event();

    // Retrieve the event name if given
    newEvent->Name = event_element->GetAttributeValue("name");

    // Is this event persistent? That is, does it execute every time the
    // condition triggers to true, or does it execute as a one-shot event, only?
    if (event_element->GetAttributeValue("persistent") == string("true")) {
      newEvent->Persistent = true;
    }

    // Does this event execute continuously when triggered to true?
    if (event_element->GetAttributeValue("continuous") == string("true")) {
      newEvent->Continuous = true;
    }

    // Process the conditions
    Element* condition_element = event_element->FindElement("condition");
    if (condition_element != 0) {
      try {
        newCondition = new FGCondition(condition_element, PropertyManager);
      } catch(string& str) {
        cout << endl << fgred << str << reset << endl << endl;
        delete newEvent;
        return false;
      }
      newEvent->Condition = newCondition;
    } else {
      cerr << "No condition specified in script event " << newEvent->Name
           << endl;
      delete newEvent;
      return false;
    }

    // Is there a delay between the time this event is triggered, and when the
    // event actions are executed?

    Element* delay_element = event_element->FindElement("delay");
    if (delay_element)
      newEvent->Delay = event_element->FindElementValueAsNumber("delay");
    else
      newEvent->Delay = 0.0;

    // Notify about when this event is triggered?
    if ((notify_element = event_element->FindElement("notify")) != 0) {
      if (notify_element->HasAttribute("format")) {
        if (notify_element->GetAttributeValue("format") == "kml") newEvent->NotifyKML = true;
      }
      newEvent->Notify = true;
      // Check here for new <description> tag that gets echoed
      string notify_description = notify_element->FindElementValue("description");
      if (!notify_description.empty()) {
        newEvent->Description = notify_description;
      }
      notify_property_element = notify_element->FindElement("property");
      while (notify_property_element) {
        notifyPropertyName = notify_property_element->GetDataLine();

        if (notify_property_element->HasAttribute("apply")) {
          string function_str = notify_property_element->GetAttributeValue("apply");
          FGTemplateFunc* f = FDMExec->GetTemplateFunc(function_str);
          if (f)
            newEvent->NotifyProperties.push_back(new FGFunctionValue(notifyPropertyName, PropertyManager, f));
          else {
            cerr << notify_property_element->ReadFrom()
              << fgred << highint << "  No function by the name "
              << function_str << " has been defined. This property will "
              << "not be logged. You should check your configuration file."
              << reset << endl;
          }
        }
        else
          newEvent->NotifyProperties.push_back(new FGPropertyValue(notifyPropertyName, PropertyManager));

        string caption_attribute = notify_property_element->GetAttributeValue("caption");
        if (caption_attribute.empty()) {
          newEvent->DisplayString.push_back(notifyPropertyName);
        } else {
          newEvent->DisplayString.push_back(caption_attribute);
        }

        notify_property_element = notify_element->FindNextElement("property");
      }
    }

    // Read set definitions (these define the actions to be taken when the event
    // is triggered).
    set_element = event_element->FindElement("set");
    while (set_element) {
      prop_name = set_element->GetAttributeValue("name");
      if (PropertyManager->HasNode(prop_name)) {
        newEvent->SetParam.push_back( PropertyManager->GetNode(prop_name) );
      } else {
        newEvent->SetParam.push_back( 0L );
      }
      newEvent->SetParamName.push_back( prop_name );

      // Todo - should probably do some safety checking here to make sure one or
      // the other of value or function is specified.
      if (!set_element->GetAttributeValue("value").empty()) {
        value = set_element->GetAttributeValueAsNumber("value");
        newEvent->Functions.push_back(nullptr);
      } else if (set_element->FindElement("function")) {
        value = 0.0;
        newEvent->Functions.push_back(new FGFunction(FDMExec, set_element->FindElement("function")));
      }
      newEvent->SetValue.push_back(value);
      newEvent->OriginalValue.push_back(0.0);
      newEvent->newValue.push_back(0.0);
      newEvent->ValueSpan.push_back(0.0);
      string tempCompare = set_element->GetAttributeValue("type");
      if      (to_lower(tempCompare).find("delta") != string::npos) newEvent->Type.push_back(FG_DELTA);
      else if (to_lower(tempCompare).find("bool") != string::npos)  newEvent->Type.push_back(FG_BOOL);
      else if (to_lower(tempCompare).find("value") != string::npos) newEvent->Type.push_back(FG_VALUE);
      else                                newEvent->Type.push_back(FG_VALUE); // DEFAULT
      tempCompare = set_element->GetAttributeValue("action");
      if      (to_lower(tempCompare).find("ramp") != string::npos) newEvent->Action.push_back(FG_RAMP);
      else if (to_lower(tempCompare).find("step") != string::npos) newEvent->Action.push_back(FG_STEP);
      else if (to_lower(tempCompare).find("exp") != string::npos) newEvent->Action.push_back(FG_EXP);
      else                               newEvent->Action.push_back(FG_STEP); // DEFAULT

      if (!set_element->GetAttributeValue("tc").empty())
        newEvent->TC.push_back(set_element->GetAttributeValueAsNumber("tc"));
      else
        newEvent->TC.push_back(1.0); // DEFAULT

      newEvent->Transiting.push_back(false);

      set_element = event_element->FindNextElement("set");
    }
    Events.push_back(*newEvent);
    delete newEvent;

    event_element = run_element->FindNextElement("event");
  }

  Debug(4);

  return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

RunScript()

bool RunScript

(

void

)

This function is called each pass through the executive Run() method IF scripting is enabled.

Returns

false if script should exit (i.e. if time limits are violated

Definition at line 379 of file FGScript.cpp.

{
  unsigned i, j;
  unsigned event_ctr = 0;

  double currentTime = FDMExec->GetSimTime();
  double newSetValue = 0;

  if (currentTime > EndTime) return false;

  // Iterate over all events.
  for (unsigned int ev_ctr=0; ev_ctr < Events.size(); ev_ctr++) {

    struct event &thisEvent = Events[ev_ctr];

    // Determine whether the set of conditional tests for this condition equate
    // to true and should cause the event to execute. If the conditions evaluate
    // to true, then the event is triggered. If the event is not persistent,
    // then this trigger will remain set true. If the event is persistent, the
    // trigger will reset to false when the condition evaluates to false.
    if (thisEvent.Condition->Evaluate()) {
      if (!thisEvent.Triggered) {

        // The conditions are true, do the setting of the desired Event
        // parameters
        for (i=0; i<thisEvent.SetValue.size(); i++) {
          if (thisEvent.SetParam[i] == 0L) { // Late bind property if necessary
            if (PropertyManager->HasNode(thisEvent.SetParamName[i])) {
              thisEvent.SetParam[i] = PropertyManager->GetNode(thisEvent.SetParamName[i]);
            } else {
              throw("No property, \""+thisEvent.SetParamName[i]+"\" is defined.");
            }
          }
          thisEvent.OriginalValue[i] = thisEvent.SetParam[i]->getDoubleValue();
          if (thisEvent.Functions[i] != 0) { // Parameter should be set to a function value
            try {
              thisEvent.SetValue[i] = thisEvent.Functions[i]->GetValue();
            } catch (string& msg) {
              std::cerr << std::endl << "A problem occurred in the execution of the script. " << msg << endl;
              throw;
            }
          }
          switch (thisEvent.Type[i]) {
          case FG_VALUE:
          case FG_BOOL:
            thisEvent.newValue[i] = thisEvent.SetValue[i];
            break;
          case FG_DELTA:
            thisEvent.newValue[i] = thisEvent.OriginalValue[i] + thisEvent.SetValue[i];
            break;
          default:
            cerr << "Invalid Type specified" << endl;
            break;
          }
          thisEvent.StartTime = currentTime + thisEvent.Delay;
          thisEvent.ValueSpan[i] = thisEvent.newValue[i] - thisEvent.OriginalValue[i];
          thisEvent.Transiting[i] = true;
        }
      }
      thisEvent.Triggered = true;

    } else if (thisEvent.Persistent) { // If the event is persistent, reset the trigger.
      thisEvent.Triggered = false; // Reset the trigger for persistent events
      thisEvent.Notified = false;  // Also reset the notification flag
    } else if (thisEvent.Continuous) { // If the event is continuous, reset the trigger.
      thisEvent.Triggered = false; // Reset the trigger for persistent events
      thisEvent.Notified = false;  // Also reset the notification flag
    }

    if ((currentTime >= thisEvent.StartTime) && thisEvent.Triggered) {

      for (i=0; i<thisEvent.SetValue.size(); i++) {
        if (thisEvent.Transiting[i]) {
          thisEvent.TimeSpan = currentTime - thisEvent.StartTime;
          switch (thisEvent.Action[i]) {
          case FG_RAMP:
            if (thisEvent.TimeSpan <= thisEvent.TC[i]) {
              newSetValue = thisEvent.TimeSpan/thisEvent.TC[i] * thisEvent.ValueSpan[i] + thisEvent.OriginalValue[i];
            } else {
              newSetValue = thisEvent.newValue[i];
              if (thisEvent.Continuous != true) thisEvent.Transiting[i] = false;
            }
            break;
          case FG_STEP:
            newSetValue = thisEvent.newValue[i];

            // If this is not a continuous event, reset the transiting flag.
            // Otherwise, it is known that the event is a continuous event.
            // Furthermore, if the event is to be determined by a function,
            // then the function will be continuously calculated.
            if (thisEvent.Continuous != true)
              thisEvent.Transiting[i] = false;
            else if (thisEvent.Functions[i] != 0)
              newSetValue = thisEvent.Functions[i]->GetValue();

            break;
          case FG_EXP:
            newSetValue = (1 - exp( -thisEvent.TimeSpan/thisEvent.TC[i] )) * thisEvent.ValueSpan[i] + thisEvent.OriginalValue[i];
            break;
          default:
            cerr << "Invalid Action specified" << endl;
            break;
          }
          thisEvent.SetParam[i]->setDoubleValue(newSetValue);
        }
      }

      // Print notification values after setting them
      if (thisEvent.Notify && !thisEvent.Notified) {
        if (thisEvent.NotifyKML) {
          cout << endl << "<Placemark>" << endl;
          cout << "  <name> " << currentTime << " seconds" << " </name>"
               << endl;
          cout << "  <description>" << endl;
          cout << "  <![CDATA[" << endl;
          cout << "  <b>" << thisEvent.Name << " (Event " << event_ctr << ")"
               << " executed at time: " << currentTime << "</b><br/>" << endl;
        } else  {
          cout << endl << underon
               << highint << thisEvent.Name << normint << underoff
               << " (Event " << event_ctr << ")"
               << " executed at time: " << highint << currentTime << normint
               << endl;
        }
        if (!thisEvent.Description.empty()) {
          cout << "    " << thisEvent.Description << endl;
        }
        for (j=0; j<thisEvent.NotifyProperties.size();j++) {
          cout << "    " << thisEvent.DisplayString[j] << " = "
               << thisEvent.NotifyProperties[j]->getDoubleValue();
          if (thisEvent.NotifyKML) cout << " <br/>";
          cout << endl;
        }
        if (thisEvent.NotifyKML) {
          cout << "  ]]>" << endl;
          cout << "  </description>" << endl;
          cout << "  <Point>" << endl;
          cout << "    <altitudeMode> absolute </altitudeMode>" << endl;
          cout << "    <extrude> 1 </extrude>" << endl;
          cout << "    <coordinates>"
               << FDMExec->GetPropagate()->GetLongitudeDeg() << ","
               << FDMExec->GetPropagate()->GetGeodLatitudeDeg() << ","
               << FDMExec->GetPropagate()->GetAltitudeASLmeters()
               << "</coordinates>" << endl;
          cout << "  </Point>" << endl;
          cout << "</Placemark>" << endl;
        }
        cout << endl;
        thisEvent.Notified = true;
      }

    }

    event_ctr++;
  }
  return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• FGScript.h
• FGScript.cpp
